Quick Details
|
Place of Origin:
|
China (Mainland)
|
Brand Name:
|
oem
|
Model Number:
|
M8801
|
|
Data storage:
|
Support 2TB HDD / 64G SD Card; USB external storage device
|
Video input:
|
4 channel video input
|
Language:
|
English, Spanish, Russian, French, Japanese, Korean, Chinese.
|
|
GPS:
|
Built-in GPS module
|
Color:
|
Meteors gray
|
Compression:
|
H.264 video compression
|
|
Resolution:
|
4 channel D1 resolution
|
Sensor:
|
Sense & Alarm
|
3G:
|
Real time monitoring from remote places
|
High resolution anti shock 25fps 2TB HDD 4 Channels recording 3G Mobile DVR for truck car bus
Specifications
1. H.264 video compression
2. 64GB SD Card/2TB HDD storage
3. Dual anti-shock design
4. Motion detection
5. Sensor & alarm
Main description
1) 4 channel video and audio recording
2) 3G Video and GPS information real-time online transmit.
3) Video format: 1 D1 (25fps) + 3CIF (25fps)
4) Alarm input: 4 alarm input, No alarm below 4V, high level alarm above 4V.
5) Alarm output: 1 alarm output, high level 12V output.
6) Compression: H.264, 100fps D1/s
7) Data Storage: MAX support 2TB SATA HDD, support 64GB SD Card.
8) Motion detection / timer switch / alarm recording
9) Dual shockproof
10) Support USB port, for mouse operation
11) Power: DC8—36V
12) Body Weight:1.0Kg.
13) Product Size: Product Size: 148 x 122 x 55mm (shock-proof mount not included)
14) Language: Chinese/English
15) Compact size, much easier for installation
16) CE, FCC and RoHS certification
Application of mobile DVR
Help the investigation of the scene for traffic accident
Gather evidence for violent crimes (blackmail and robbery)
Facilitate the management of company vehicles(GPS positioning)
Full view backing-car function
Sensor & alarm
Home security(CCTV)
|
SPECIFICATIONS
|
|
Items
|
M8801
|
|
System
|
Language
|
Simple Chinese/Traditional Chinese/English
|
|
Operation Interface
|
Graphical User interface (OSD menu)
|
|
Password
|
Users Password/ Administrator Password
|
|
Vision
|
Video input
|
4-CH video input, 1.0Vp-p,75Ω, in car aviation connector
|
|
Video output
|
1-CH video & audio output, 1.0Vp-p,75Ω, in car aviation connector
|
|
Preview
|
Support 1 channel or 4 channels synchronous preview.
|
|
Recording Ratio
|
PAL 25 Frame/s CCIR625 line, 50 field
NTSC 30 Frame/s CCIR525 line, 60 field
|
|
Image Compression
|
H.264 main profile, VBR/CBR
|
|
Audio
|
Audio input
|
4-CH Audio input, 600Ω, in car aviation connector
|
|
Audio output
|
1-CH Audio output, 600Ω, in car aviation connector
|
|
Recording mode
|
Audio & Video synchronous recorded
|
|
Image processing & storage
|
Video format
|
4-CH CIF: 25fps;
4-CH HD1: 25fps;
1D1: 25fps + 3CIF: 25fps
|
|
Video stream
|
ISO14496-10
|
|
Video Rate(kbps)
|
CIF: 1536Kbps ~ 128Kbps, 8 levels optional. Highest:1 level
HD1: 2048Kbps ~ 380Kbps, 8 levels optional. Highest:1 level
D1: 2048Kbps ~ 400Kbps, 8 levels optional. Highest:1 level
|
|
Audio Bitrate
|
4Kbytes/s
|
|
Storage
|
SATA 2.5’’ hard drive (support max 2TB) and SD card storage (support max 64GB)
|
|
Alarm
|
Alarm input
|
4-CH alarm input
|
|
Alarm output
|
1 alarm output, high level 12V output.
|
|
Special Functions
|
GPS
|
Built-in GPS module, GPS information (Google map, driving route, Coordinate, Speed, Veer) can be recorded together with video and audio.
|
|
3G
|
3G Supported (built-in WCDMA/EVDO module)
|
|
Software included
|
Analysis of PC playback
|
|
Upgrade
|
CMS
|
Playback video on PC, and analyze the vehicle info in the file
|
|
Support SD cards upgrade
|
Video preview via GPS upload, alarm upload, central command and parameters configuration, etc
|
|
SIZE
|
148*122*55MM (shockproof mount not included)
|
Product Tags:
|
|

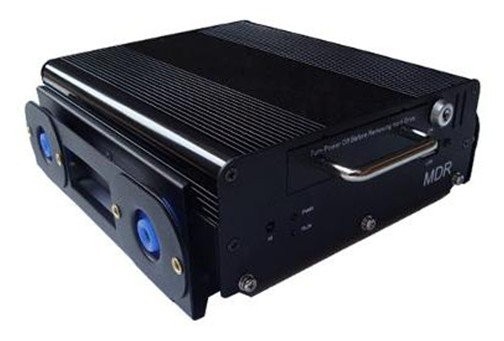

High resolution anti shock 25fps 2TB HDD 4 Channels recording 3G Mobile DVR for truck car bus Images
|
