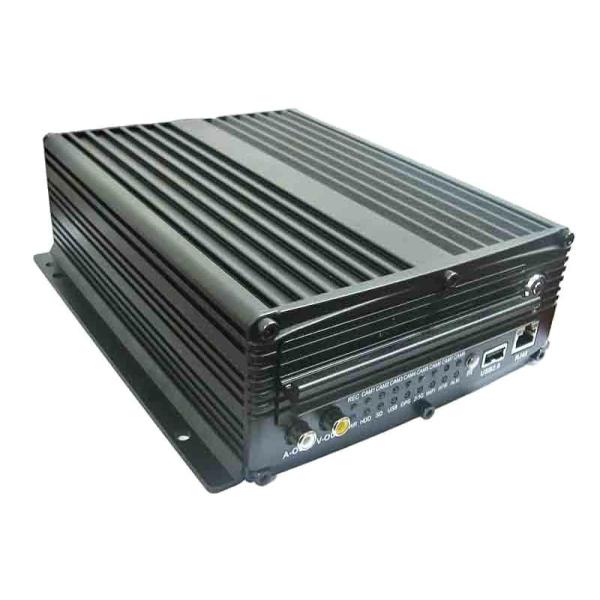

Model No.
|
VG-2204A
|
|
Operation system
|
Linux
|
|
GUI
|
Setup system parameters with remote controller
|
|
Security management
|
Support user password, supervisor password management; support encryption transmission
|
|
Video
|
Video input/output
|
4-channel CVBS video input, 1-channel CVBS video output; 1.0Vp-p, 75Ω
|
|
Dual stream
|
Support
|
|
OSD
|
Time & date, vehicle ID, GPS etc
|
|
Compression
|
H.264. Hisilicon high performance processor is applied.
|
|
Preview function
|
Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
|
|
Video frame rate
|
PAL: 100 frame/sec, up to 25 frame/sec for single channel
|
|
NTSC: 120 frame/sec, up to 30 frame/sec for single channel
|
|
Video resolution
|
CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF
|
|
Video quality
|
Level 1 to 5 video quality adaptive, level 1 best, level 5 lowest
|
|
Video Bit Rate
|
CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional
|
|
HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional
|
|
D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional
|
|
Audio
|
Audio input/output
|
4-channel input; 1-channel output
|
|
Compression
|
G.726
|
|
Recording
|
Storage media
|
Support one 2.5 inch hard disk and one SD card with 32G maximum capacity
|
|
File format/system
|
ASF/ FAT32
|
|
Recording mode
|
Startup recording by default, support timing, alarm & event trigger, manual recording
|
|
Recording search
|
Search recording video files by time, type, storage device, etc.
|
|
Recording playback
|
Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
|
|
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
|
|
Alarm
|
Alarm input
|
6-channel alarm input
|
|
Alarm recording
|
Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
|
|
Alarm output
|
1-channel alarm output
|
|
Storage space
|
Support the setting of remain storage space alarm function
|
|
Functional alarm
|
Overspeed alarm, acceleration alarm, motion detection alarm
|
|
Communication interface
|
RS232, RJ45 10M/100M self-adaption Ethernet interface
|
|
Wireless transmission (optional)
|
Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module;
|
|
GPS (optional)
|
Support external GPS module
|
|
Data remote transmission
|
Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
|
|
PTZ control
|
Support PTZ control function by local remote controller or client software;
|
|
Parameter configuration
|
Support parameter configuration
|
|
G-sensor
|
Built-in
|
|
System upgrade
|
Support SD card / Hard disk / Remote upgrade
|
|
Power supply & consumption
|
Power supply management
|
ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown
|
|
Input voltage
|
DC:+8V ~ +36V
|
|
Output voltage
|
+12V.4*0.5A, +5V.0.5A
|
|
Power-off protection
|
Patent UPS power-off protection technology, ensure the integrality of recording data when accidental power failure occurs
|
|
Power consumption
|
Less than 10W in normal working state; less than 0.5W in standby mode
|
|
Working environment
|
Temperature
|
Normal: 0ºC ~ +60ºC
|
|
Hard disk pre-heating: -25 ºC ~ +60 ºC
|
|
Humidity
|
10% to 95%
|
|
Dimension
|
160(W) x62(H) x200(D) mm.
|
|
Weight
|
Net weight: 2200g, gross weight: 3500g
|
