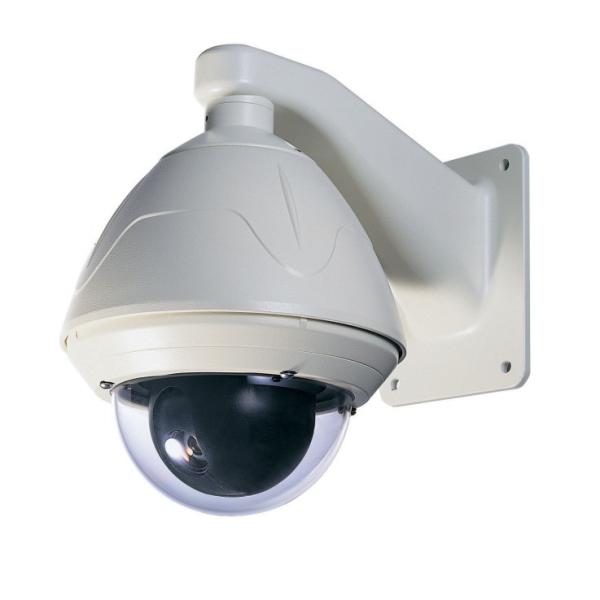

White Color Outdoor 10x Digital zoom Medium 1/4" High sensitivity CCD II Speed Dome Cameras

Model No.

EC-SP2202-C1

EC-SP2702-E1

Camera Type

Color Outdoor Medium Speed Dome Camera

Image Sensor

1/4" High sensitivity CCD II

1/4 inch SONY Super HAD CCD

Zoom

220x Zoom(22x Optical, 10x Digital)

27x Zoom(27x Optical)

Scanning System

2:1 Interlace

Signal System

PAL /NTSC

Horizontal Resolution

580 TV Lines

420 TV Lines

Min. Illumination

Color 0.5Lux(30IRE), B/W 0.1Lux(30IRE),
DSS 0.001Lux(128FLD, 30IRE)

Color(0.8 Lux), B/W(0 Lux,IR On)

Lens

22x Zoom f=3.6~79.2mm

27x Zoom 3.9mm-105.3mm

Focus

Auto / Keyboard Control

S/N Ratio

More Than 48dB (AGC Off)

Electronic Shutter

1/50(1/60) ~ 1/10,000 Sec.

White Balance

ON / OFF

AGC

ON / OFF

BLC

ON / OFF

Supporting camera

Option: Sony Hitachi CNB LG Samsung

Address

255

Pan range

360°Continues rotation

Tilt range

0°~90° Flip

Tilt speed

5°-60°/s adjustable

Pan speed

7°-80°/s adjustable

presets position

64 three-D preset position

Tours

4 Programmable(Dwell time speed preset point)

Flip limit

Horizontally/Vertically adjustable

Control protocol

PELCO-D/P

Auto Scan

Yes ( Programmable speed )

OSD menu display

Support

Home position

Yes

communication

RS485 (+/-)

Connection

BNC cable

Supplied Voltage

AC 24V 2.0A 50W/60HZ

Power Consumption

32W

Operation Temperature

-20°C to 60°C

Product Size

Φ240X280mm

Package Size

335X300X410mm

Weight(Gross)

Approx 5.8 Kg
